制动盘车床系列

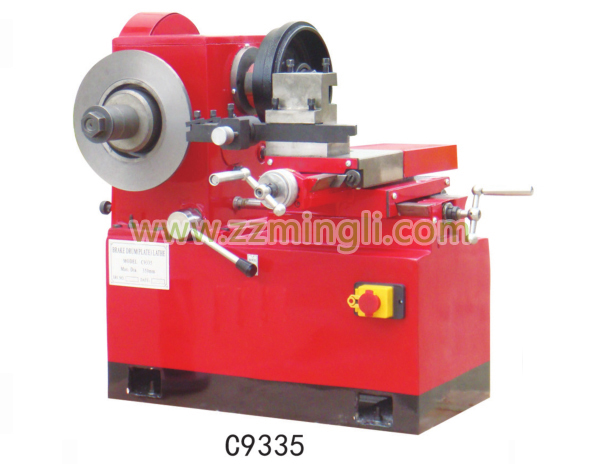

C9335制动盘车床
| 主要技术参数 | Main Specifications | C9365 | C9335 |
| 加工直径范围mm | Range Processing Diameter-Brake Drum | 350-650 | 180-350 |
| Prake Plate | 180-400 | 180-350 | |
| 工件转速r/min | Rotating Speed Of Workpiece | 30.49.88 | 90 |
| 刀具最大行程mm | MAX.Travel Of Tool | 256 | 100 |
| 电机功率kw | Motor Power | 1.1 | 0.75 |
| 外形尺寸mm(L*W*H) | Overall Dimensions | 1750*800*815 | 695**565*635 |
| 包装尺寸mm(L*W*H) | Packing Dimensions | 1165*956*915 | 750*710*730 |
| 净重/毛重kg | N.W/G.W | 650/800 | 200/260 |
